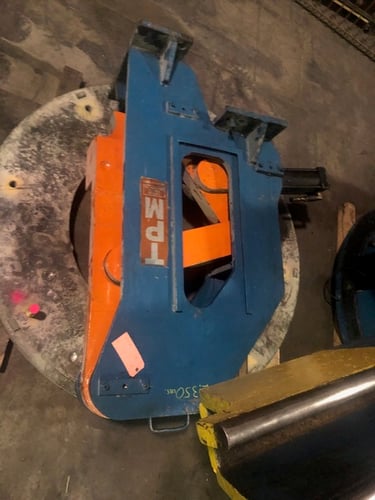

SPECIFICATIONS:

MFG: TPM, Brampton, ON

Can raise Uncoiler Capacity from 10,000-20,000lbs

For use on Manrel type uncoilers

Floor mount Arm raises vertical to horizontal position for support of
Mandrel

Approx 58" from Centerline/Pivot of support arm to longest part/front
of base. Approx 48" to shorter part/rear of base.

Arm is approx 44.5" from pivot of support arm to center of horn
support.

Bearing is designed for a 4" dia. Horn

Weight 2400lbs Approx dimensions: 48" x 60" x 24"H
