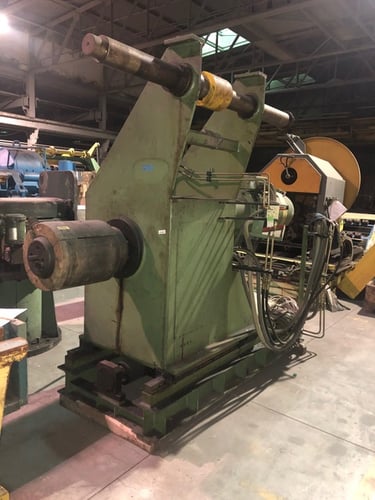

SPECIFICATIONS:

14.5" Face Mandrel
16" ID (15" Dia. colapsed) with 3" Thick Pads
3" Thick Pads
5" Thick Pads
2 additional Mandrel Shafts
72" + OD
Slide Base
Hold Down Arm, Shaft & Cylinder(No roll/wheel presently)

Lenze/Intorq(Extertal Germany) Servo Drive Motor BFK458-20
44kW(59HP)at 60hz, 1770RPM, 480(Y)/277(delta)V.
37kW(49HP)at 50hz, 1470RPM, 400(Y)/230(delta)V.

Lenze GFL09-2 N HCK 2 K Gearbox
GFL Shaft-mounted helical gearbox/geared motor
These 2 and 3-stage parallel-axis gearboxes are primarily used as
shaft-mounted gearboxes. The gearbox has a space-saving design and is
easy to mount. As well as enabling internal power or torque sharing,
the output shaft is accessible for further use (e.g. for installing
encoders).

The gearboxes/geared motors
Drive-end versions
Integrated three-phase AC motors
IEC motor adapter
Free shaft input
Output-end versions
Hollow shaft with keyway or shrink disc
Solid shaft with keyway
Foot or flange mounting
Integrated torque plate with rubber buffer

6.864:1 ratio

1-09 = Size

2 = Stage

N = Gearbox with mounting flange for IEC Standard Motor

H = HOLLOW SHAFT
C = Pitch Circle with Centering
K = Flange with thru holes
