SPECIFICATIONS:

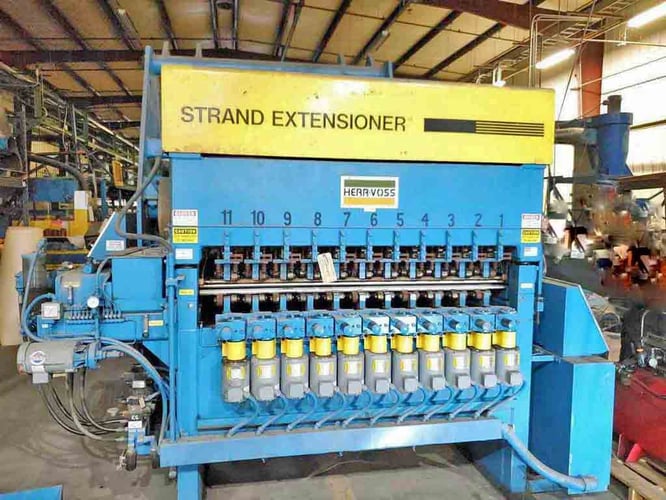

Herr Voss Strand Extensioner 5 HI

-Model: 72/1.156-23/5 HI / RH
-Width Capacity: 62.5" Max.
-23 Roll design, 11 over 12
-Minimum Coil Thickness: 0.008"
-Maximum Coil Thickness: 0.040" (0.076" depending on recoiler hp)
-Maximum Line Speed: 1500 FPM
-Material Yield Strength: 12,000 to 40,000 PSI
-72" Roll Face
-1.1560" Roll Diameter
-11 Flights of Motorized Backups
-Hydraulic Motor Drive with Pinion Box
-Lube system
-Operators Panel w/Joystick Controls
-Line direction: R - L

Exit Unit:
-Deflector Roll
-Powered Bottom Nip Roll with Hydraulic Motor Drive
-Hydraulic Crop Shear
-Exit Threading Table
-Operators Panel

-Spares

Extensioner was never used, but includes reconditioning due to sitting
 idle. This includes new bearings, reconditioned or new back ups,
reconditoned intermediate rols & work rolls. Comes with a spare set
of work & intermediate rolls.

Price As-Is: $189,500.00



-Removed and in Storage at our Mack Ave., Detroit, MI warehouse.
