72" wide material
60,000Lbs capacity
20" ID
72" OD
Left to Right Mode of Operation

Coil Car: L&M Equip. S/N-12415-1
50,000 LBS max. Capacity
44" Deck
72" OD
20" from bottom of "V" to Floor

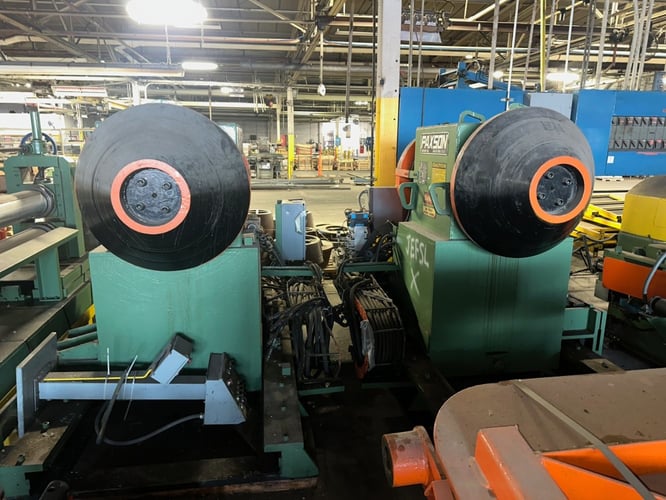

Paxson Cone Uncoiler
Slide Bases
57" from Floor to CenterLine of Cones
Whichita Brakes, one on each Mandrel
Hydraulic Feed up Motor, one on each Mandrel

Entry Unit
Peeler Table
Pinch Rolls

Crop Shear
Single Rake
76" Blade face
73" Pass Height

Paxson Slitter Base & Heads

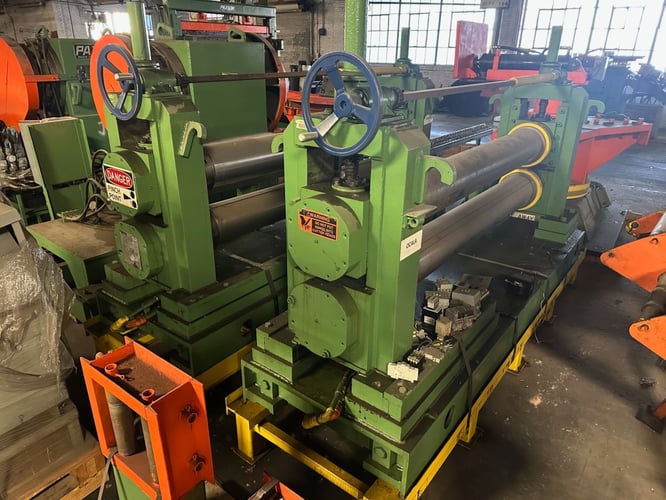

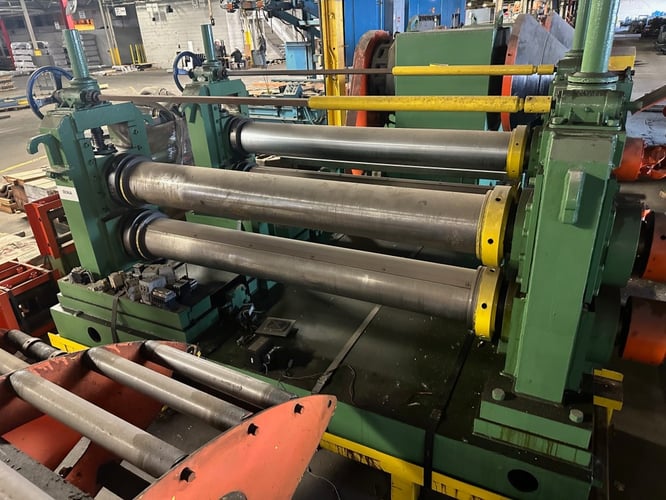

Entry Pinch Rolls
Side Guides
2 Interchangable Slitter Heads
Drop in Design
9" Dia. Arbors x 74.5" Face
75HP, 650/2100RPM, 500V.,129Amp Motor
Falk Gear Reducer(yr 12/2004):  6.155:1 Ratio, 75HP, 650/105RPM In/Out

Two- Paxson Oscilating Scrap Winders
22.5" x 36" Dia. Spools

Pit Cross Over Table

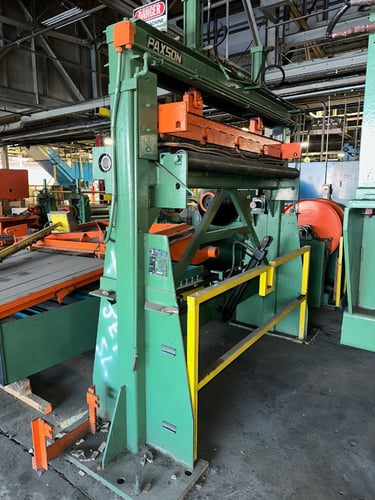

Drag Board Tension Stand
76" wide Drag Boards
76" Pass Height

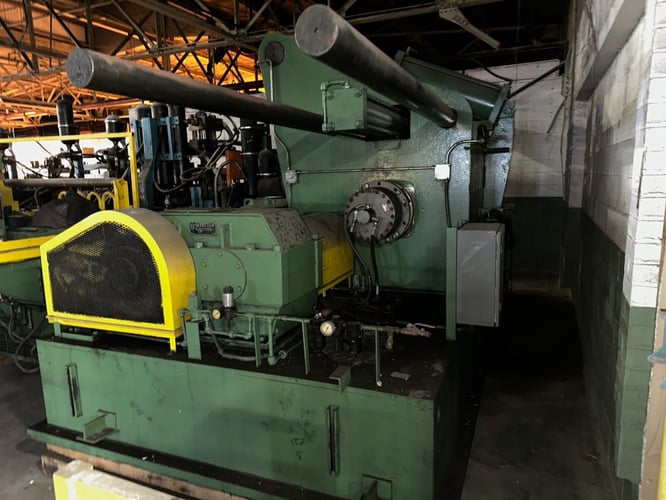

Paxson Recoiler
S/N: 11603:6:1522 12/77
78" Face Drum
20" ID
55" from Floor to Centerline of Drum
Hydraulic Grip & Expansion of Drum
Over Arm Seperator
100HP, 500V., 650/1950RPM, 162Amp DC Motor
Horsburgh & Scott(S/N: I-8757) 2 Speed Reducer
2.0:1 & 1.0:1, 650 Input RPM

Exit Coil Car

2 Arm Turnstile with Pusher
79.5" Usable arm lengeth with wear bars
120.5" Radius
56.5" From floor to top of arm
5" wide x 14" deep channel for C-Hook use

Double set Hydraulic Power Units
Two-50 HP, 1770RPM, 230/460V, 125/62.5Amp, 3Ph, 60Hz Motor with Pumps &
Two Tanks

3 Door Enclosure for Drives & Controls
1 drive present, one drive missing, PLC missing
Drive: Allen Bradley 1395
I/Os & relays present

No operators console known of at this time

Left to Right mode of Operation
