SPECIFICATIONS:

MFG: ROWE
Year: 1993

(SOLD) Rowe Uncoiler: $54,500.00
Model: 50060-DSJ
-Capacity: 50,000# x 60"
-4 Leaf Pumpkin Tooth Mandrel Design
-Hydraulic Wedge Type Mandrel Expansion
-20" - 24" Coil I.D. Range
-Hydraulic Slide Base
-Attached Powered Holddown Roll
 36" W x 10" Dia. Rubber Covered Roll
-Max. Coil O.D.: 72"
-Hydraulic Motor Feed Up Drive w/Air Clutch
-Fawick Air Brake
-Passline: 62" Center Drum to Floor
-Line Direction: Right to Left

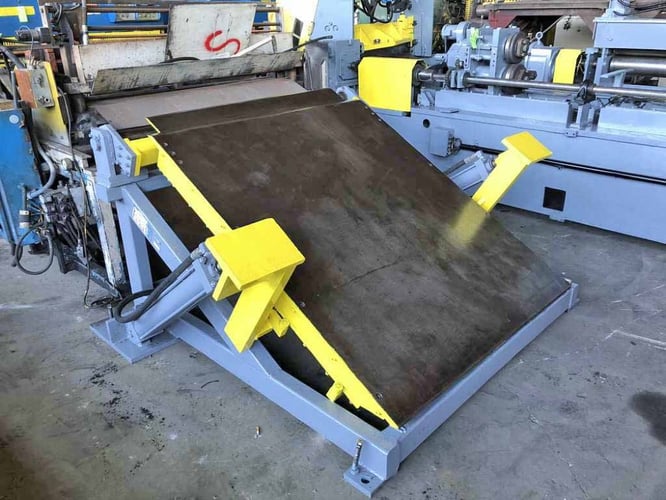

Rowe Peeler Table: $11,500.00
Model PT/HD-60
S/N: 28057
-Capacity: 60" W x 0.250"
-(2) Hydraulic Cylinders for Up / Down Movement
-(1) Hydraulic Cylinder for In / Out Movement of Peeler Blade
Overall Size: 92"L x 74"W x 43"H

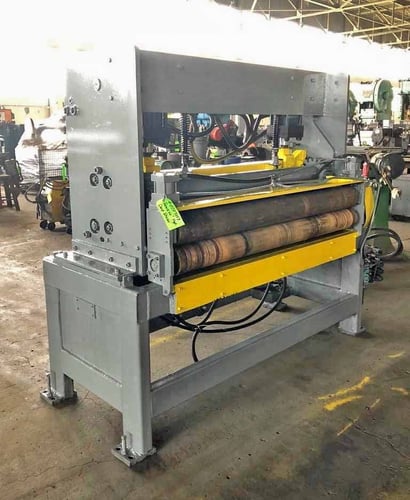

Rowe Pinch Rolls: $10,500.00
-Capacity: 60" x 0.250"
-60" Face x 7" Dia. Rolls
-62.5" Between Housings
-Air Cylinder Loaded
-25 HP DC Motor with Blower
 1750 RPM, 500V
 Less Solid State Drive
-In-Line Gear Reducer
-Passline: 43"
-Overall Size: 157" L x 18" W x 63" High

Rowe Hydraulic Crop Shear: $24,500.00
-Capacity: 0.250" x 60"
-Entry Driven Pinch Rolls
 66" Face x 5.5" Dia., Rubber Covered
-Straight Blade Design: 64" Long Blade
-Hydraulic Down Cut Via 2 Parker Cylinders
-(2) - 6" Bore Parker Hydraulic Cylinders
-Passline: 40.5"
-Overall Size: 98" L x 48" W x 80" High

Rowe Edge Trimmers: $11,500.00
-Capacity: 60" x 0.250"
-Double-Stub Design
-64" Max. Width
-Powered Width Adjustment
-Entry Edge Guides on (1) Unit
-Passline: 42"
-Less Drive Motors
-Overall Size: 165" L x 58" W x 52" High
-In Storage: Toledo, Ohio
-Note: (2) Units Available, each at below listed price.

(SOLD) Rowe Heavy Duty Straightener: $32,500.00
Model C15-60
-Capacity: 0.048" - 0.250" Mild Steel
-Entry Side Guides
 Manual Adjustment
-(4) Entry Driven Coil Breaker Rolls
 65" W x 7" Dia.
-(7) Work Rolls, 3 over 4 Design
 65" W x 7" Dia.
-(2) Exit Driven Pinch Rolls
 65" W x 7" Dia.
-Hydraulic Open / Close on Pinch Rolls
-Vertical Adjustment of Work Rolls by 3 HP AC Motor thru Jackscrews
-50 HP DC Drive, Variable Speed
-Line Speed: 35 - 100 FPM
-Overall Dimensions: Flattener 91" L x 120" W
 Drive: 108" L x 36" W

(SOLD) Braner High Speed Shear: $34,500.00
Year: 1998
-For use in Cut-to-Length Line
-Capacity: 0.250" x 72" (Mild Steel)
-75" Long Blade
-Mechanical Downacting
-Motor: 40 HP AC, 1750 RPM
-Air Clutch and Brake
-Raked Blade
-Approx. Overall Size: 154" L x 60" W x 128" High

 REF #: 10221-HK SERIAL #: YEAR: 1993


Coil Width: 60"
Coil ID: 20" - 24"
Coil OD: 72"
Gauge Range: 0.048" - 0.250"
Line Direction: Left to Right

Consisting of the following:

-Peeler Table:
 Model PT/HD-60
 S/N: 28057
 Capacity: 60" W x 0.250"
 (2) Hydraulic Cylinders for Up / Down Movement
 (1) Hydraulic Cylinder for In / Out Movement of Peeler Blade
 Overall Size: 92" L x 74" W x 43" High

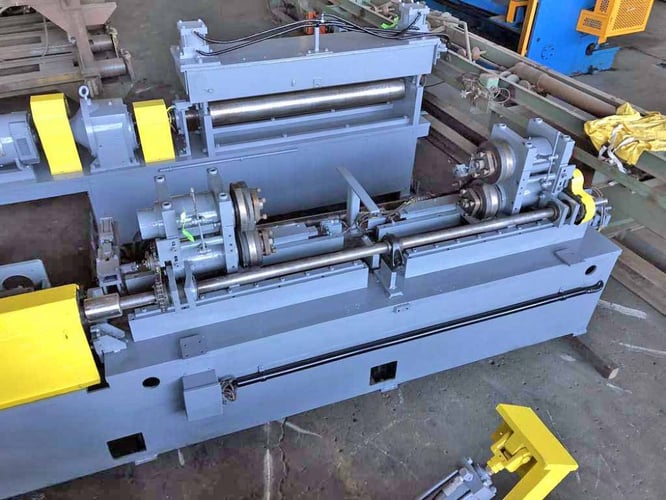

-Lee Shaffer Coil End Joiner:
 S/N: 28072
 Capacity: 60" x 0.250"
 Welding Platen: 64" Long
 Weld Clamp Station with Dual Weld Clamp Pads
 Weld Carriage Rides on Precision Screw Shaft
 driven by Vari-Speed DC Motor.
 Exit Passline Roll
 Controls for:
 Left Weld Clamp Open / Close
 Right Hand Weld Clamp Open / Close
 Platen Index Left / Right
 Torch Jog, Fwd / Run
 Weld
 Emergency Stop
 Rheostat for Torch Feed Speed
 Passline: 42"
 Overall Size: 100" L x 60" W x 65" High
 Note: Less Welding Unit

-Scrap Chopper:
 S/N: 28066
 Capacity: 0.250" Mild Steel
 (2) "Sets" of Entry Driven Pinch Rolls
 Each "Set" individually driven by Hydraulic Motors
 Chopper Blades: (2) 6" L x 2" W x 1.125" Thick Blades per Side
 Approx. 2" Max. Entry Strip Width
 AC Drive Motor
 Overall Size: 40" L x 36" Wide W x 52" High

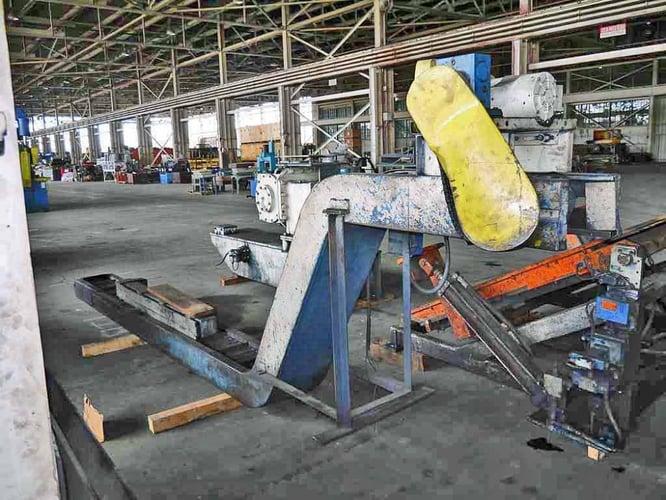

-Gooseneck Scrap Conveyor:
 S/N: 28070
 11" Wide Conveyor Belt
 AC Motor Driven
 Overall Size: 231" L x 28" W x 74" High

-In Storage: Toledo, OH
