MFG:  Stamco
Year: 1995
SO:  25-95-7
S/N:  4865

Width:                      54"
Weight:                     35,000 lbs.
ID Range:                   16" - 20" - 24"
Coil OD:                    72" max.
Gauges Processed:           0.010" - 0.100"
Line Direction:             Right to Left
Line Speed:                 500 and 1200 FPM
Shear Strength:             156,000-170,000 PSI

Consisting of the following:

-4 Arm Entry Turnstile:
  C-Hook Type Arms
  Power Rotation

-Scissor Lift Coil Car:
  Powered Roller Top
  Self-Contained Hydraulic Power Unit
  Hydraulic Lift & Travel

-DC Driven Inter-Leaf Coiler

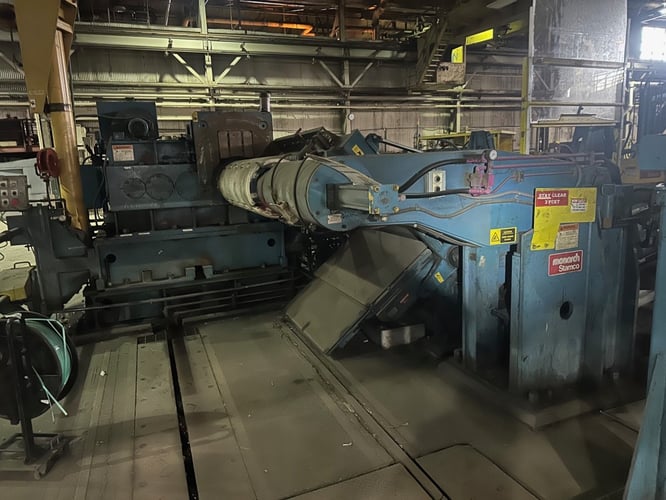

-Turret Type Uncoiler:
  60" Face Mandrel
  Hydraulic Expansion
  Pumpkin Tooth Mandrels
  Overarm Holddown Roll
  DC Motor Drive & Brake
  Slide Base

-Articulating Peeler Table

-Entry Unit:
  Entry Pinch Rolls- 16" dia. x 60" face, 75HP DC motor, 650/2200RPM, 123 Amp,
     Horsburgh & Scott Helical Reducer(6.388:1 Ratio)
  Traveling Design - delivers metal over Pit to Slitter Head
  Crop Shear- Single Rake, 60" wide blade with metal belt conveor for removal of crops

-Injector Slitter Head:
  Driven Entry Pinch Roll Stand
  Tooling Change by 4 Arm Turret
  (1) Slitter Head
  (1) Double-Stub Edge Trimmer
  Hydraulic Tooling Lock Up
  200 HP DC Motor Drive(GE KinaMatic), 500V, 650/2200RPM, 325amp,

-Scrap Baller:

-Pit Carry Over Unit:
  Cascade Rolls Entry & Exit
  Pad Tension Unit Travels

-Combination Pad & Roll Type Tension Stand:
  Pneumatic Air Bag Type Pad Tension
  DC Motor Drive / Brake for Rolls
  16" Diameter Urethane Covered Rolls
  Hydraulic Crop Shear

-Free Standing Overarm Separator:
  Entry Deflector Roll

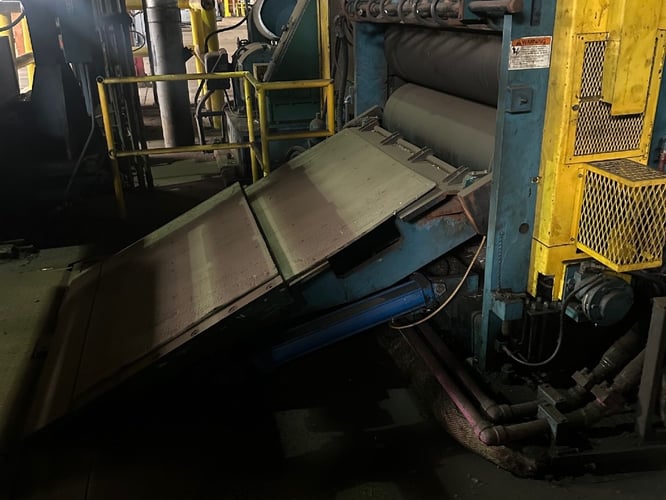

  Threading Table

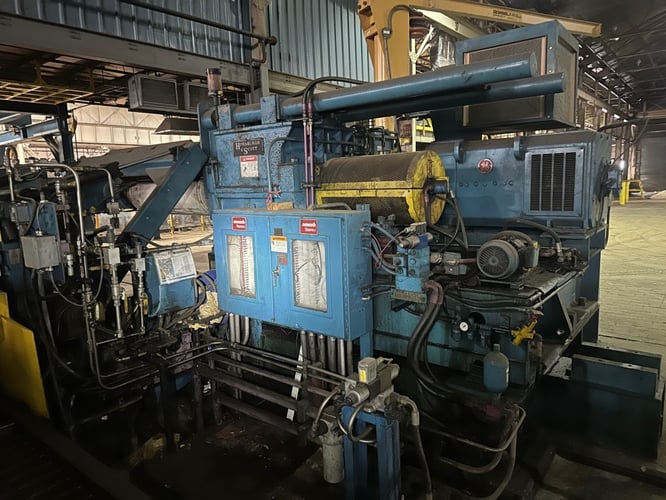

-Recoiler:
  16" Dia. x 60 face Drum, 62" from Center line of Drum to Floor(approx. 11.5" shaft)
  20" & 24" Bolt-On Pads
  Hydraulic Gripper & Expansion
  Hydraulic Pushoff
  200 HP DC Motor Drive(GE KinaMatic), 500V, 650/2200RPM, 325amp,
  Horsburgh & Scott 2 Speed Reducer: 200HP, 200FPM(Low), 1200FPM(High)
  Outboard Bearing Support

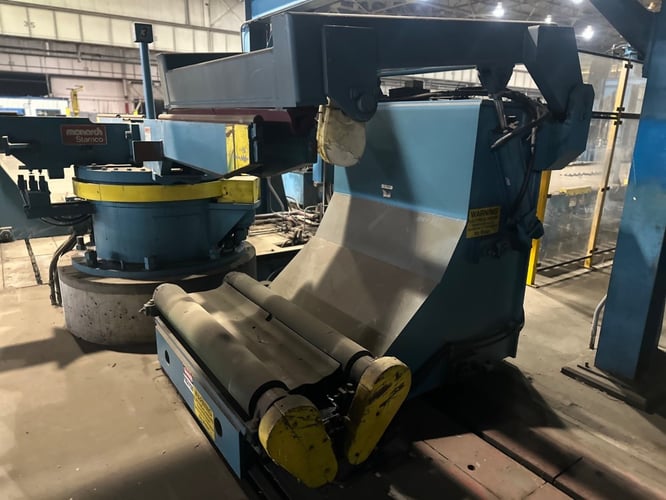

-Exit Coil Car:
  L Type
  Powered Rollers on Bed
  Self-Contained Hydraulic Power Unit
  Hydraulic Lift & Travel
  Overarm Holddown Arm/Coil Steadies

-4 Arm Exit Turnstile:
  C-Hook Type Arms
  Power Rotation

-Motor, 3 Pump Hydraulic Power Unit

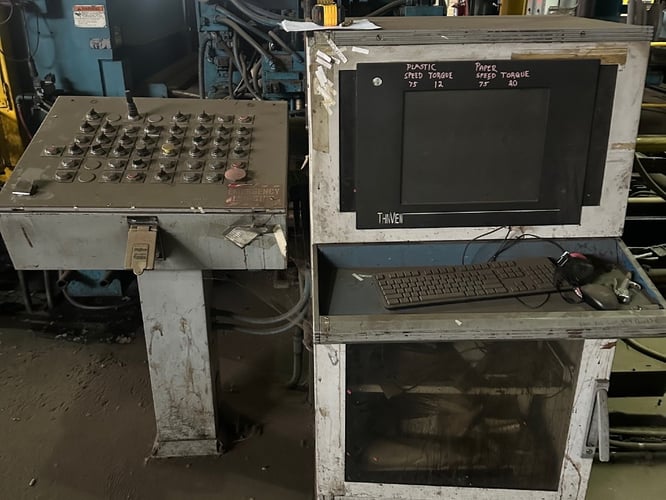

Westinghouse/Avtron Advanced Digital Drives for DC Motors

-Line is Installed
