Category: Slitters

54" x 7.5" Loopco, slitting heads, drop in type, 100 HP, 500 V.

Details

Description


SPECIFICATIONS:

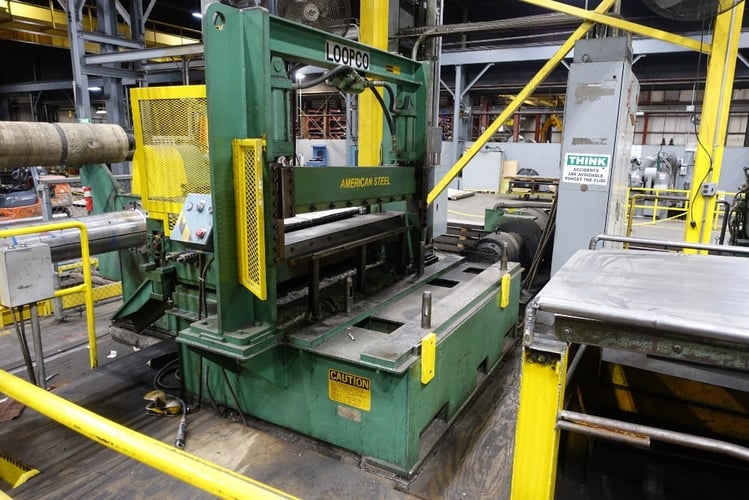

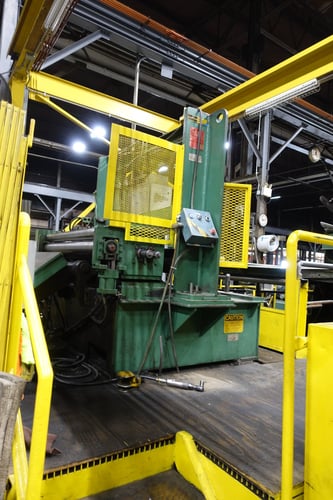

54" LOOPCO SLITTING HEADS
LOOPCO ENTRY UNIT consisting of
Peeler Table

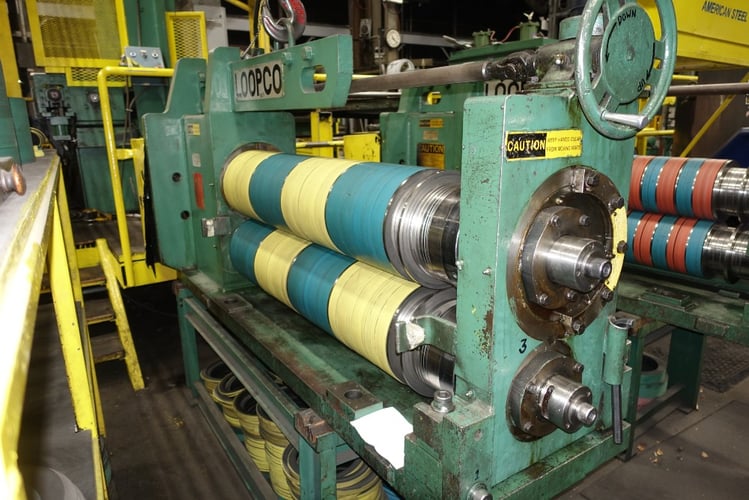

Pinch Rolls
Side Guides
Crop Shear-S/N: 6458E 12908

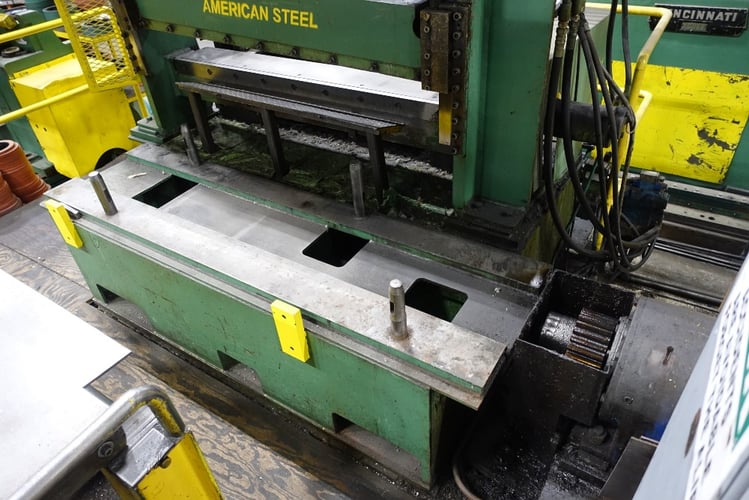

Drop In Type Slitter Head- Single Eccentric design
Model GII 7.5x52 L slitter, S/N: 6458E 12910-B. 7.5" Diameter Arbors,
55.5" Face Arbor Length
Comes with 3 sets of Shimmed Tooling& Knives approx. 11.75" OD, 12.25"
OD,
Slitter Drive-100 HP DC Motor, 500 V., 850/255 RPM with Drive(TBD)
125 HP 3.38:1 ratio Gear Box, 1750 RPM input, 520 RPM output, Serv.
Factor 1
