SPECIFICATIONS:

MFG: Automatic Feed Compnay, Nepoleon, OH
MFG: WEAN Industries
Year: 1988

50,000lbs Max. Coil Weight Capacity
Coil ID: 22-26"
Coil OD: 24" Min. 72" Max.
Width: 24" Min.-84" Max.
Line Speed 300FPM

Consisting of:

Automatic Feed Co. Double Expanding Mandrel Reel/Uncoiler & Coil Cart

Coil Cart
 Lifts coil from turntsile, rotates coil, shuttles coil to reel
 and lifts to mandrels(Wheels shafts & bearings ar missing from the
cart)We have an alternative
 60,000lbs cart that can replace the present unit.

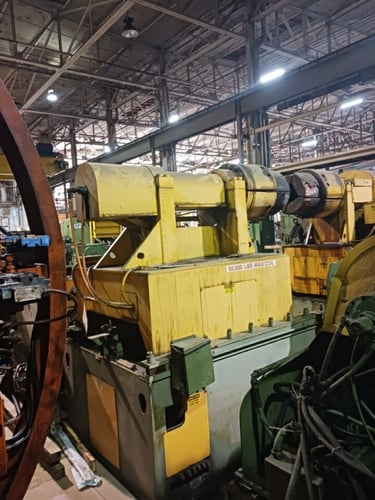

Double Stub Uncoiler
 50,000# capacity on the tag(capable of 60,000#. The 50,000lbs
limitation is in the rotation
 of the coil cart.
 72" OD
 20-24" ID
 72" coil width
 DC feed up/drive
 Dynamic breaking via DC motor
 Hydraulic Expansion of mandrels
(We also have other double end Uncoilers that could replace the AFCO
50,000lbs if greater capacity is required)

Nominal 72" width but by spacing the reels further apart, wider widths
 76"/78"/84" etc. are attainable. We also have a single & two coil
prep station that can be added.

Wean Entry Feed Up Unit:
Hold Down Roll/Snubber, SO: 140, Dwg. 108320
Peeler Table, SO: 150, Dwg. C-108319
Entry Pinch Rolls, SO: 160, Dwg. C-108349
Side Guides, SO: 160, Dwg. C-108383
Crop Shear/Crimper, SO: 170, Dwg. 2-130324

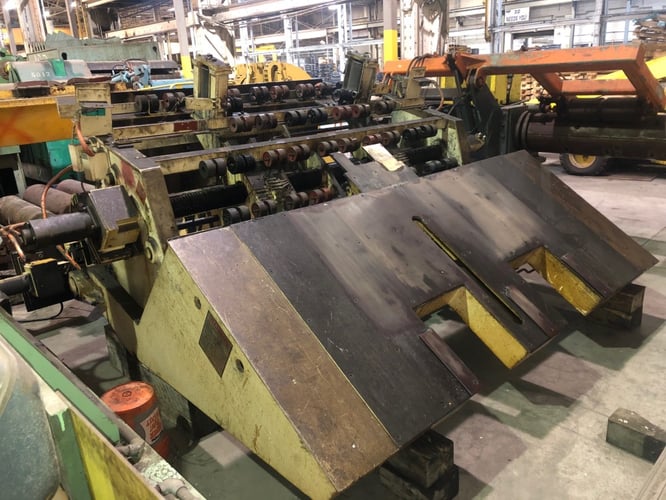

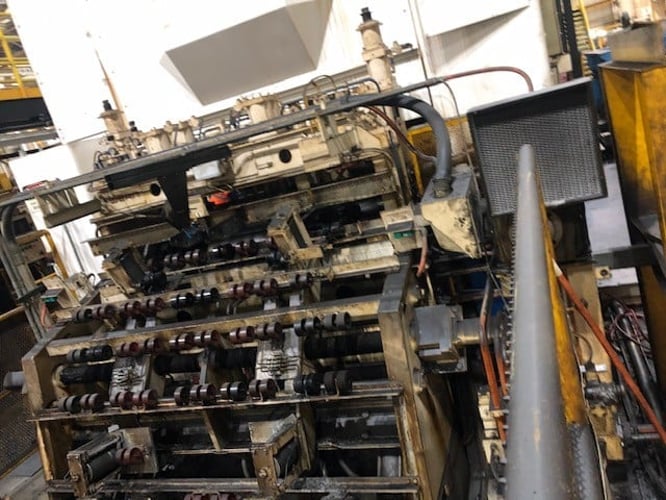

AUTOMATIC FEED COMPANY Staightener
4 over 3 construction with 3 flights of Back Ups
3" dia. work rolls x 80" face
Entry, Backed Up, Pinch Rolls
150 fpm capable
These units are designed to automotive application with guaranteed
performance

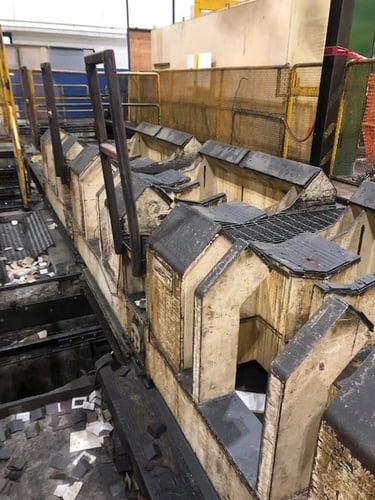

-Looping Cascades/Catenary Tables
Radius: 50"
Urethane coated rollers
-Table Table with Stock Guides
Radius 50"
Urethane coated rollers
with 2 sets of double roll steel Stock Guides
-Pit Cross Over Tables
92.35" & 88.88" Table lengths from Pivot
Hyd, actuated extension tables Front & Back
Existing Pit: 126" Long

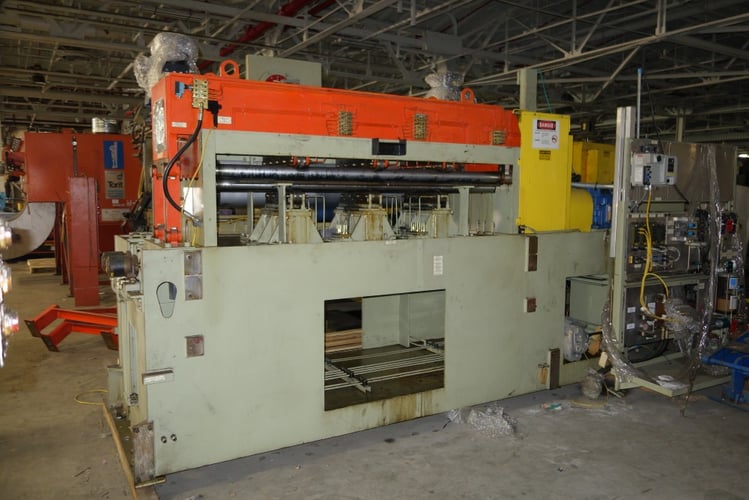

-Feeder(Roll type)
Anti Back Up Rolls: 6.25" Dia.
Measuring Roll:
Feed Rolls: 7.28 Dia. x 90" face
Unico GE 490-1500 Motor 368AT Frame
57" Pass Height

The original Wean electrics are available & included with the
purchase.

We also have an Automatic Feed Co. Low Pressure Lubricant Brush Washer
 that could be added to the line at an additional price.
