SPECIFICATIONS:

MFG: AUTOMATIC FEED COMPANY, Napoleon, Ohio

Model: 507272
S/N: 94278

Capacity: 50,000# per arm
20" ID (18.5"physical dim. corner to corner)
Channelled for C-hook use: 9.25" wide x 13" deep
Aprox. 89.5" from floor to top of Arm
Aprox. 98" radius swing
60" x 60" square base plate
Electrically powered Rotation
Avon Bearing # 10298-2

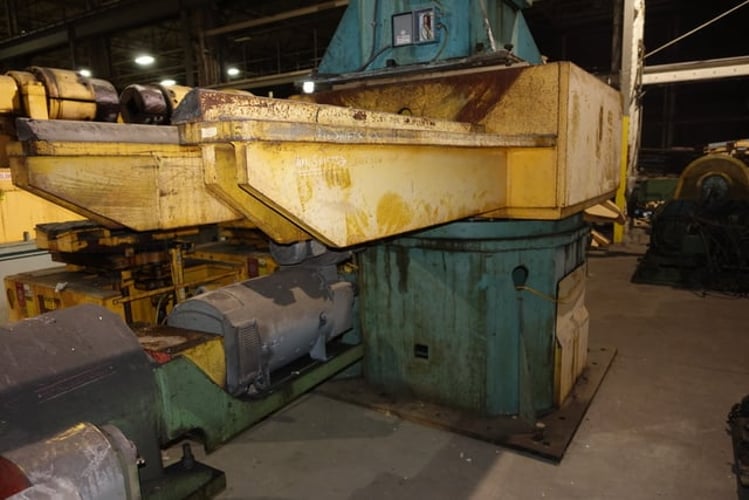

This Turnstile was built by the OEM to hold the capacity of 4 arms at
50,000# per arm.

Can be converted to convetional design to handle four(4) 60,000# Coils
