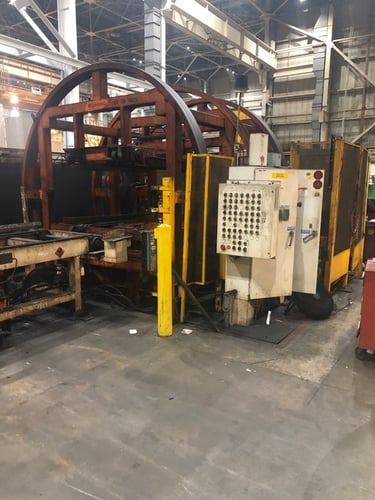

SPECIFICATIONS:

MFG: ATLAS, Fenton, MI
S/N: Job No. F663.00
Year: 1995

Capacity 12,000lbs

Bundle Turnover with 2 sets of chains for in/out feed of material
Gap(Distance between conveyor chain when full open): 36"
Width(Opening Left to Right between frames): 89"
Depth: From frame to frame is 112.5", 94" of Flat Chain
Pass Height: 53"(to be confirmed)
2 sets of rows of chain conveyor
Clamping via (4) Ball Screw Jacks with 20.5" of Closure

Chain Conveyor
Right Angle transfer capability
2 sets of chain conveyor each direction
Feeds material into the cavity

Lift Conveyor
2 rows of chain conveyor

Shipping: Approx. 11' Wide x 11'7" High x 15' Long
