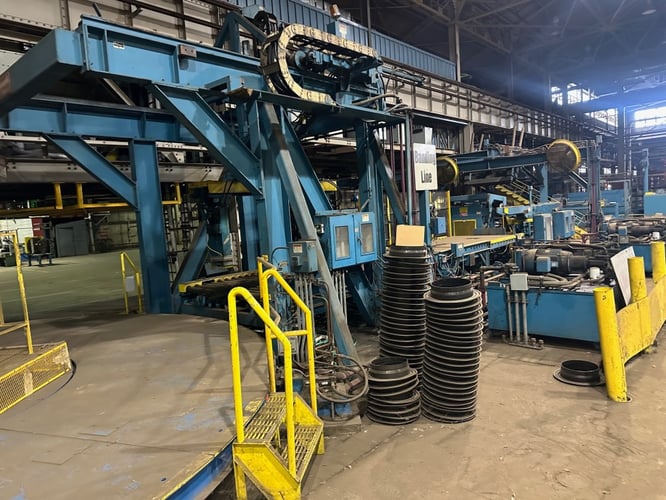

MFG: STAMCO

Pick and Place Downlayer
10,000Lbs Capacity
16" Min. ID
4" dia. x 82" Conveyor Rolls on 8" Centers, 36" Pass Height
In Line Discharge

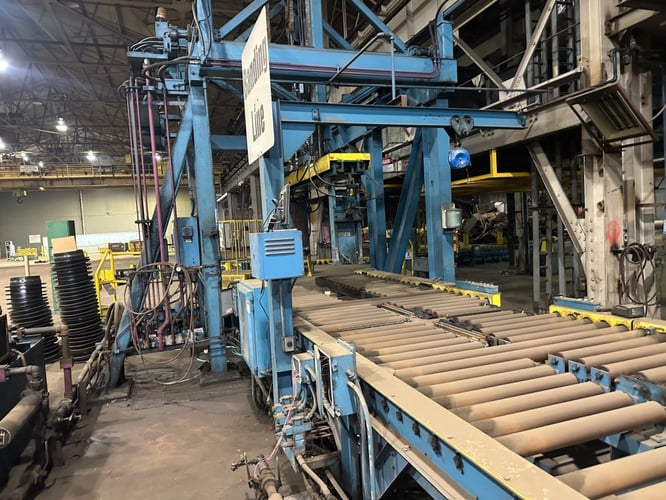

90" Long Driven Roller Conveyor
3.5" dia. x 79" Conveyor Rolls on 6" Centers, 36" Pass Height

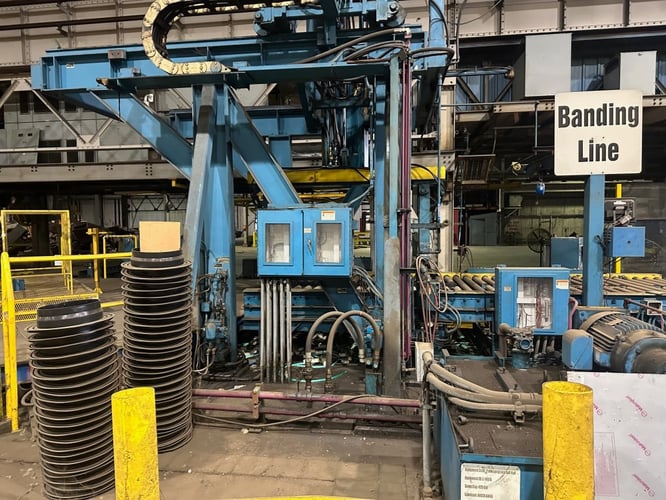

90" Cross style Banding Table, 4 Arm Lift & Rotate
3.5" dia. x 79" Conveyor Rolls on 6" Centers, 36" Pass Height

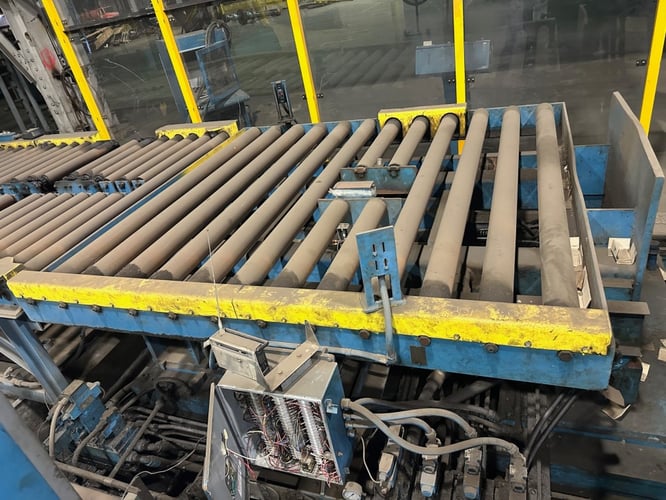

Stacker with 120" of Split Driven Roller Conveyor
12,000Lbs Capacity
OD Grab Design
72" OD x 36" Wide Mult Capable
3.5" dia. x 79" Wide Conveyor Rolls on 6" Centers, 36" Pass Height

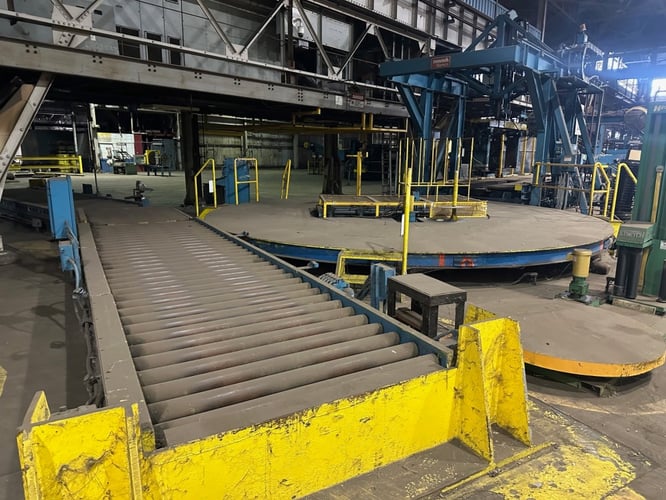

8 Place Carousel with Pusher
20,000Lbs Capacity Stack Weight per Station
42" Max. Stack Height
25' Diameter
20" Pass/Table Height
Hydraulic Pusher for Discharge to Pallet Conveyor

Rotating Conveyor to Exit Coils on Pallets in two directions
3.5" Dia. x 66" Wide Conveyor Rolls, 20" Pass Height.

Direction 1:
86" Long Scale Conveyor w/Readout, 3.5" Dia. x 66" Wide Conveyor Rolls,  20" Pass Height.
2 sections of 86" Long Driven Roller Conveyor, 3.5" Dia. x 66" Wide Conveyor Rolls, 20"
  Pass Height.
End Stop

Direction 2:
3 sections of Driven Roller Conveyor, 3.5" Dia. x 66" Wide Conveyor Rolls,  20" Pass Height.
End Stop
